NoteHMS Class Reference
[Musical Symbols]

#include <NoteHMS.h>

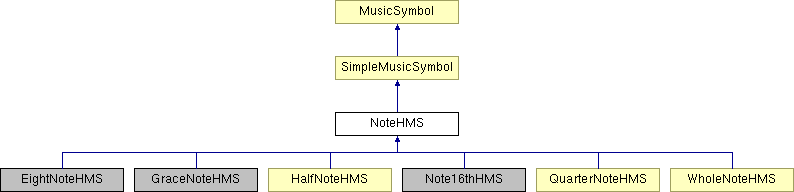

Inheritance diagram for NoteHMS:

List of all members.

Public Member Functions
	NoteHMS (int, QString, double, double, int)
void	setExtraLine (int)
void	draw (Painter *)
virtual Collider *	getCollider ()
void	setDot ()
void	setRightStemX ()
void	setLeftStemX ()
virtual double	getLeftX ()
void	setX (double)
double	getX ()
virtual double	getRightX ()
virtual double	getStemX ()
void	setShift (int)
virtual QString	toString ()
void	setStemSupport (StemSupport *)
StemSupport *	getStemSupport ()
Protected Attributes
int	rightStem
int	extraLine
StemSupport *	stemSupport

---

Detailed Description

This is a base classe for the NoteHeads

---

Constructor & Destructor Documentation

NoteHMS::NoteHMS (  int  i, QString  s, double  x, double  y, int  encode )

This will build the noteHMS Parameters: s  name x  x coordinate y  y coordinate extraline  the number of extra line. 0 if none <0 if under >0 if upper

---

Member Function Documentation

void NoteHMS::draw (  Painter *  p  )  [virtual]

This draws the symbol and the Extra Lines if the note is over or under the staff Reimplemented from SimpleMusicSymbol.

Collider * NoteHMS::getCollider (   )  [virtual]

Because the computation of a Collider cost lots of CPU and mem we overide this method in the note heads because it is a very current symbol. It should appear in the metrics (After) Reimplemented from SimpleMusicSymbol.

double NoteHMS::getLeftX (   )  [virtual]

The note head music symbol has a particular hinting Returns: the left x pos of the note

double NoteHMS::getRightX (   )  [virtual]

Returns: the right x pos of the note

double NoteHMS::getStemX (   )  [virtual]

generalize the use of this property in the contruction of stem instead of the multiple if. Returns: the x pos of the stem related to the notehead

double NoteHMS::getX (   )  [virtual]

Returns: x Reimplemented from MusicSymbol.

void NoteHMS::setDot (   )

Sets the note dotted

void NoteHMS::setExtraLine (  int  xLine  )

Sets the number of extralines Parameters: the  xtraline it is pair if it is on the line it is impair if it is not

void NoteHMS::setLeftStemX (   )

generalize the use of this property in the contruction of stem instead of the multiple if. This set the X pos of stem related to the notehead at the leftx of the note

void NoteHMS::setRightStemX (   )

generalize the use of this property in the contruction of stem instead of the multiple if. This set the X pos of stem related to the notehead at the right x of the note

void NoteHMS::setShift (  int  s  )

When two notes are close the shift let them be be distinct. Parameters: s  the shift -1 is for a left shift 1 is for a right shift (Not Nice to do this a the mainting time) instead we sould use the support of a note and set the note MS left Shift property.

void NoteHMS::setX (  double  d  )  [virtual]

Sets the x position. This method is overided for the collision of two notes. In this case the center point of the note moves to the left. Reimplemented from MusicSymbol.

QString NoteHMS::toString (   )  [virtual]

For many symbols this function should be overrided. Returns: a string reprentation of the MusicSymbol (For a debug purpose). Reimplemented from MusicSymbol.

---

The documentation for this class was generated from the following files:

• NoteHMS.h
• NoteHMS.cpp

---
